Thread: Lingenfelter 2009 C6 ZR1 Corvette Runs 10.03 @ 141.50 MPH!

  1. #1

    Default Lingenfelter 2009 C6 ZR1 Corvette Runs 10.03 @ 141.50 MPH!

    The Lingenfelter Track Rental Day at Muncie Dragway produced a new fastest time for the Lingenfelter 2009 ZR1 Corvette. This Lingenfelter ZR1 has the latest version of our second level of supercharger upgrades and produces an impressive 739 RWHP & 720 RWTQ. The Lingenfelter supercharger upgrades included our pulley upgrade, air intake modifications, intercooler improvements and tuning. This was run with stock exhaust manifolds and factory cat back exhaust with Mild to Wild Switch. Link to Video of 1/4 run http://www.lingenfelter.com/video

  2. #2

    Default Lingenfelter C6 ZR1 Supercharger Upgrade Details

    The modifications so far are the result of our C6 ZR1 development work and included the following:

    Stock LS9 cylinder heads & short block
    Stock LS9 exhaust manifolds and cat back exhaust system

    - LPE 8.5” diameter harmonic balancer – 11 rib
    - LPE 2.60” diameter supercharger pulley – 11 rib
    - Lingenfelter S&B air filter
    - 4” diameter air intake tube with mass air sensor
    - Ported stock throttle body
    - Intercooler supercharger inlet modifications
    - Double capacity intercooler heat exchanger
    - Larger capacity intercooler reservoir system
    - Mickey Thompson ET Street Radials P345/35R18 rear
    - M&H Racemaster P185/50R18 front
    - CCW Aluminum wheels

    Humid 80 F degree Indiana weather at 932 ft altitude

    Lingenfelter will be offering the components included in the Lingenfelter ZR1 upgrade for sale as individual components or a complete package. The timeline for release will be determined following our validation process. Pricing and additional details will be available as soon it becomes available.

  3. Default

    Awesome... another good reason to buy more Texas lottery tickets !

  4. #4

    Default Lingenfelter 2009 C6 ZR1 Corvette 10.03 @ 141.50 MPH -- Take 2 With a Better View

    Thanks to Ranger from the Corvette Forum here is a better view of the Lingenfelter ZR1 Corvette making our 10.03 1/4 mile pass. Click here for the video - - >

  5. #5

    Default Lingenfelter C6 ZR1 Corvette Front Wheels Off The Ground

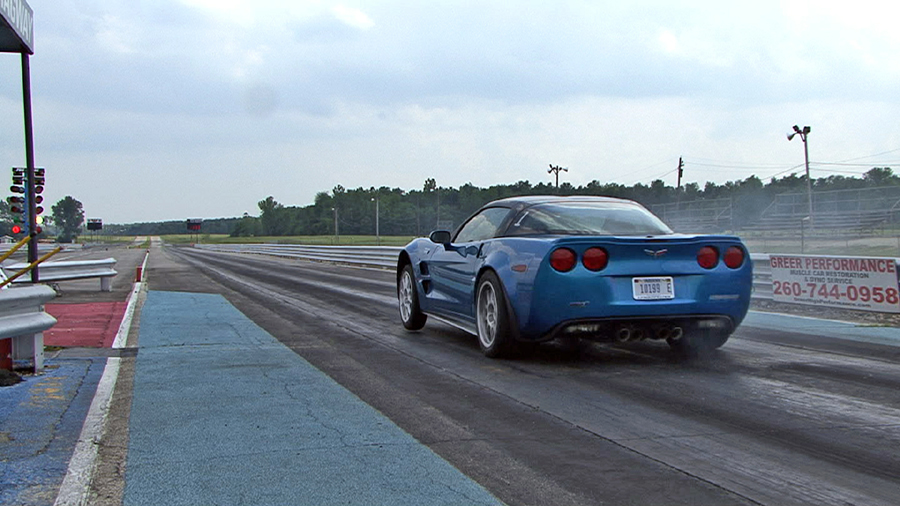

    These pictures are also courtesy of Ranger from the Corvette Forum.

  6. Default

    Just another reason why I am proud to have your name on my car!!! Congrats to all you guys @ the shop and keep em comin...
