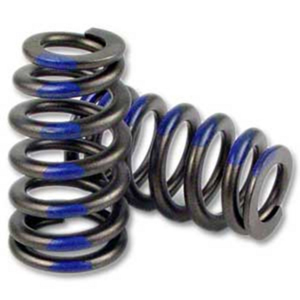

LS1, LS2, LS6 Competition Cams Beehive Ovate Valve Springs
 | Quantity in Basket:none
Code: 26915-16
Price:$148.95
Shipping Weight: 2.00 pounds
| |
| |
Designed for LS1, LS2, LS6 Gen III General Motors applications these
single beehive ovate springs are designed to be a better than stock
replacement with less load capacity than the 26918-16 spring. These
springs can be installed with no machining and would use the GM factory
valve seals with integral seat cups.
|
Part # |
Description |
ID |
Seat lbs |
Open lbs |
Coil Bind |
Rate lbs/inch |
Titanium Retainer |
Steel Retainer |
Seat Cup |
Locks |
| 26915-16 |
1.055/1.290
Single Beehive Ovate |
.660/.885 |
105
@ 1.800 |
293
@ 1.200 |
1.085 |
313 |
772-16 |
774-16
783-16 |
12482062-8
12482063-8 |
623-16 |
|
