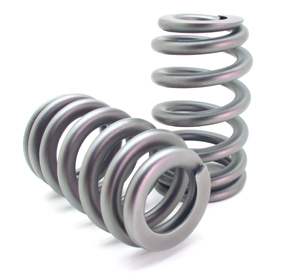

LS1, LS2, LS6 Competition Cams Beehive Ovate Valve Springs
 | Quantity in Basket:none
Code: 26918-16
Price:$179.95
Shipping Weight: 1.00 pounds
| |
|
|
Designed for LS1, LS2, LS6 Gen III
General Motors applications these single beehive ovate springs are
designed for up to .650" lift. These springs can be installed
with no machining and would use the GM factory valve seals with integral
seat cups.
|
| Part
# |
Description |
ID |
Seat
lbs |
Open
lbs |
Coil
Bind |
Rate
lbs/inch |
Titanium
Retainer |
Steel
Retainer |
Seat
Cup |
Locks |
| 26918-16 |
1.055/1.290
Single Beehive Ovate |
.660/.885 |
125
@ 1.800 |
367
@ 1.115 |
1.100 |
373 |
772-16 |
774-16
783-16 |
12482062-8
12482063-8 |
623-16 |
|
