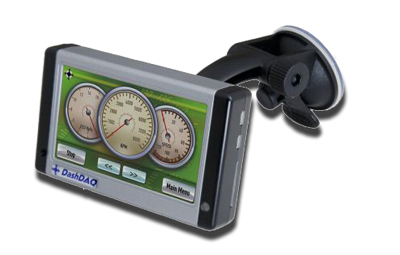

DashDAQ OBD II Computer Display - Vehicle System Monitor, Data Logger, Clear Diagnostic Codes
 | Quantity in Basket:none
Code: DASHDAQ-2
Price:$674.95
Shipping Weight: 4.00 pounds
| |

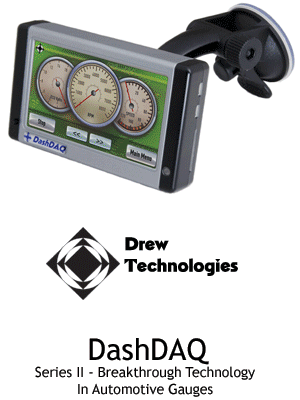

| DashDAQ is a windshield-mounted in cabin vehicle monitor that easily installs in seconds.
DashDAQ’s unique features allow you do many different things all from one screen:
Customizable Dashboard Display
• Display sensor data from the factory OBD2 ECU, showing more data than the factory dashboard
• Customize your dashboard with your own background, graphics, and gauge layouts
• Expand your dashboard by adding analog inputs, serial devices, USB Host devices, and 3rd party products
• Add a boost or EGT gauge
• Connect to an Innovate AFR meter (or other brand)
• Replace the factory instrument cluster for hot rods and motor swap projects using one or more
DashDAQs'
Data Logger and Flight Recorder
• Show info on gauges in real-time
• Record to optional MMC/SD card, up to 4GB
• Calculate Horsepower, Torque, and Performance
• Calculate MPG and set configurable trip counters
• Even if your vehicle doesn't have a trip computer that calculates fuel economy
the DashDAQ can display it on the screen for you to see real-time fuel economy and consumption
information - most apps.
Diagnostic Tool
• Find out why your check-engine light is on
• Read and Clear Diagnostic Trouble Codes
• View sensor data to figure out which parts may be defective
Custom gauges:
What separates DashDAQ from all other gauges and digital dashboards is it's high resolution color display and customization capabilities.
DashDAQ's 4" touch-screen offers 480x272 resolution and 24-bit color. |
 |
Supported vehicles
| Acura |
Ariel Atom |
Aston Martin |
Audi |
Bentley |
BMW |
| Buick |
Cadillac |
Chevrolet |
Chrysler |
Daewoo |
Dodge |
| Ferrari |
Ford |
GMC |
Holden |
Honda |
Hummer |
| Hyundai |
Infiniti |
Isuzu |
Jaguar |
Jeep |
Kia |
| Lamborghini |
Land Rover |
Lexus |
Lincoln |
Lotus |
Maserati |
| Mazda |
Mercedes |
Mercury |
Mini |
Mitsubishi |
Nissan |
| Oldsmobile |
Plymouth |
Pontiac |
Porsche |
Rolls Royce |
Roush |
| SAAB |
Saturn |
Saleen |
Scion |
Subaru |
Suzuki |
| Toyota |
Volvo |
VW |
|
|
|
Display
|
4"
COLOR TFT w/touch panel
|
|
Resolution
|
480
x 272 (QWVGA) w 24-bit color display
|
|
System
Processor
|
240MHZ
ARM9
|
|
Vehicle
Bus Processor
|
48MHZ
ARM7
|
|
RAM
|
64MB
SDRAM
|
|
Flash
|
16MB
Flash
|
|
Memory
Expansion
|
MMC/SD
Card 128MB to 8GB+
|
|
Device
I/O
|
touch-panel,
ambient light sensor, 16-bit stereo line-out, 1W speaker,
USB device port, programmable button
|
|
Vehicle
I/O
|
CAN,
J1850VPW (GM Class 2), J1850PWM (Ford SCP), ISO9141, KWP2000
|
|
Expansion
I/O
|
(2)
USB Host Ports, (2) RS232 Ports, (2) 0-5V 10-bit analog
inputs
|
|
Add-on
sensors
|
Blackline
GPS (up to 20HZ), Innovate MTS Bus products, 0-5V Wideband
O2 Sensors, NMEA GPS, USB 3-axis Accelerometer, USB K-Type
Thermocouple
|
|
Operating
temperature
|
-35
to 85C
|
|
Operating
voltage
|
6
to 30V
|
|
Current
Draw
|
200mA
at 100% backlight
|
|
Dimensions
|
4.6"
x 2.75" x 1"
|
|
Weight
|
0.5LB
|
|
Operating
System
|
Linux
|
|
Warranty
|
factory
tested with 1 year warranty
|
|
Other
Features
|
Real
Time Clock, locking connectors, factory tested, field
upgradeable firmware
|
|
Mounting
Pattern
|
AMPS
4-HOLE standard
|
|
Package
Contents
|
DashDAQ,
Vehicle Cable, USB Cable, Windshield Pedestal, CD-ROM, users
manual |
| |
|
