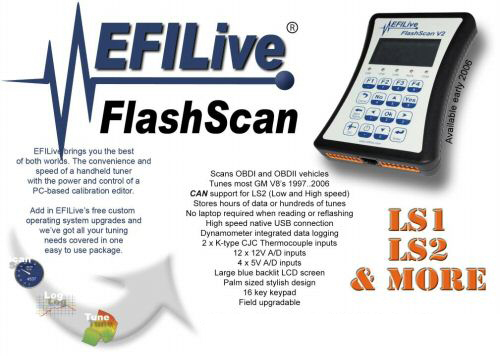

EFILive V2 FlashScan Tuner For Most GM Engine Based Apps Includes 2008 Corvette,Trailblazer SS
 | Quantity in Basket:none
Code: FS2-T
Price:$749.95
Shipping Weight: 1.00 pounds
| |
| |
Ready to program 2008 Corvette and many more new
applications. EFILive's FlashScan V2 Scan and Tune package is all you need to start scanning, diagnosing and tuning your high performance GM gas or diesel engine and transmission.
The base package ships with two VIN licenses as standard which means you can tune two engines and two transmissions (up to four controllers) out of the box. If you need to tune more vehicles, simply purchase additional VIN Licenses for $99. Each VIN license allows you to tune one engine and one
transmission you can buy the extra license over our web site and they will be
emailed to you. You need to have received your V2 system and get
information from the manual to buy the extra license. Come back to this
page to order and scroll to the bottom of page.
EFILive is proud to announce the public release of FlashScan V2 and EFILive V7.3.3.
FlashScan V2 delivers unrivalled features that set a new benchmark in the GM performance-tuning world.
This second generation hardware from EFILive creates the platform to deliver the first multi functional, PC based and standalone data logger and ECM reprogramming system for GM high performance engines. FlashScan V2 combines EFILive’s powerful PC based scanning and tuning tools with the simplicity of a handheld programmer. It has been designed to support many late model, OBDII gas and diesel GM engines including LS2 and
LBZ.
Gen IV Vehicle Support
FlashScan V2 delivers the much-anticipated communications protocol for Gen IV platform support. The first release of EFILive’s Gen-IV support delivers the most comprehensive list of tuning features ever offered for GM’s high performance engines.
THIS PRICE INCLUDES FREE UPS GROUND SHIPPING TO CONTIGUOUS USA STATES, OR
PRIORITY US MAIL TO OTHER USA & CANADA.
| Flashscan V2
Product Features |
|
|
* Handheld and/or pass-through FlashScan V2 Interface. |
* Field Upgradeable Firmware. |
|
* FlashScan V1 to V2 License transfer option. |
* GM Gen-III and groundbreaking Gen-IV tuning support. |
|
* Additional support and features for existing platforms. |
|
|
* 600+ engine calibrations
|
* ECM recovery from failed programming event
|
|
* Secure ECM locking
|
|
|
* Software fixes and patches to fix the following Gen-IV issues:
|
|
| * MAF Fault - TCS Fault
- VAT problems |
|
|
Hardware Features of FlashScan V2 include: |
|
|
* Infineon XC161 40MHz CPU |
* 512K on board RAM |
|
* Capacity for Secure Digital (SD) memory card up to 2Gb. |
* 16 key polycarbonate keypad |
|
* 5 status LED’s |
* High Speed USB 2.0 |
|
* RS232 digital interface |
* 2 x 12V digital input switches |
|
* Communications protocols: OBDI/ALDL; OBDII/VPW, OBDII/CAN; GM-LAN |
* Ergonomic shape for easy operation in one hand |
|
Field upgradeable firmware allows EFILive to develop and deliver outstanding features to users without the need to return your FlashScan V2 interface for upgrade or replace it to gain feature enhancements. This functionality makes futuristic features possible and extends the life of your hardware investment. |
Future firmware updates will provide users with features including: |
|
* Standalone black box logging to FlashScan V2 internal memory and SD memory card |
* Standalone reading and flashing of ECMs |
|
* Standalone scanning/logging of data to LCD screen |
* Storage of tunes to SD memory card |
|
* Audible alarms when PIDs go out of user defined ranges |
* High Speed USB 2.0 |
|
* Power off button and/or timer based sleep mode |
* 4 x 5v analog inputs |
|
* LCD backlight brightness control |
* Data logging from external serial input. i.e. Supported Dyno software, WBO2 |
| Features
carried over from the Version 1 system |
|
| Tunner Navigation |
Back/Next buttons
for browser style navigation |
| Intuitive
"Windows Explorer" style navigation |
Hotlinks in
descriptions link directly to other calibrations |
| Calibration search
feature |
Every calibration
has an on screen description |
| User defined
calibration groups |
Tuning Tool
highlights operating cells of current scan data |
| User
information |
|
| Displays extended
PCM information |
Displays segment
checksums |
| VIN component
display |
User comments can
be recorded in tuning files |
| Automatic history
tracking of all changes |
User notes can be
recorded per calibration item |
| Graphics |
|
| Real-time 3D
rotating, scalable surface maps & editable 2D line charts |
Surface maps are
color coded to match data tables |
| Data
editing |
|
| Rich set of
function keys for easy data modification |
Linear or quadratic
data blending |
| Data smoothing and
extrapolation |
Standard copy and
paste |
| Extended copy and
paste |
Data changed
indicators |
| Complete
undo/redo/revert facility |
Script file
processing for common/repetitive editing |
| Edit/display data
in choice of Metric or Imperial |
Select display
precision from 0 to 6 decimal places |
| Display engine RPM
for all shift speeds |
Electronic Throttle
Control (ETC) calibrations |
| Compare two
calibration files |
Display all
calibrations that are different |
| Display all
calibrations that are identical |
Display all
calibrations that have been modified |
| Reading
PCM / Reflashing PCM |
|
| Read most 512Kb
PCM's in under 2 minutes |
Read most 1Mb PCMs
in under 2.5 minutes |
| Failsafe reflash
PCM calibration in under 30 seconds |
Reflash 512Kb
operating system in about 2.5 minutes |
| Reflash 1Mb
operating system in about 3.5 minutes |
Retain CASE learn
data during full reflash |
| PCM licensing /
Support |
Reflash 2 to 25
different PCMs of your choice |
| Free/Unlimited
Software Upgrades |
Free, Moderated
Online User Community Forum |
| |
|
The latest Version of Flashscan V2 Supports All Of These Vehicles Updates
Coming Soon
| CHEVROLET
Cars 5.7L, 6.0L , 4L60E |
|
| 1998 - 2002 Chevy
Camaro Z28/SS |
1997-2008 Chevy
Corvette Coupe, Convertible & ZO6 |
| 2006 - 2008 Chevrolet
Impala SS/Monte Carlo |
|
| CHEVROLET
TRUCKS 4.8L, 5.3L, 6.0L, 8.1L, LB7, LLY, 4L60E, 4.65E, 4L80E |
|
| 2002-2007 Chevy
Avalanche 1500/2500 |
1999-2007 Chevy
Silverado 4X2, 4X4, 1500/2500/3500 |
| 2003-2006 Chevy SSR |
|
| 2007 Equinox |
|
| CHEVROLET
VANS 4.3L, 4.8L, 5.3L, 6.0L, 8.1L, LB7, LLY, 4L60E, 4L80E |
|
| 2001-2007 Chevy
Express |
2001-2005 Chevy
Astro |
| CHEVROLET
SUV's 4.3L, 4.8L, 5.3L, 6.0L, 8.1L, 4L60E, 4L80E |
|
| 2000-2004 Chevy
Blazer |
2000-2004 Chevy S10 |
| 2000-2007 Chevy
Suburban |
2000-2008 Chevy
Tahoe |
| 2002-2007 GMC Envoy |
2005-2007 Chevy
Trailblazer & Trailblazer SS |
| PONTIAC
CARS 5.7L, 4L60E |
|
| 1998-2002 Pontiac
Firebird Formula/Trans Am/Ws6 |
2004-2006 Pontiac
GTO |
| 2005-2006 Pontiac Grand Prix
GPX |
2007 Pontiac G6 |
| 2007 Pontiac
Torrent |
|
| GMC
TRUCKS 4.3L, 4.8L, 5.3L, 6.0L, 8.1L, LB7, LLY, 4L60E, 4.65E, 4L80E |
|
| 1999-2007 GMC
Sierra 4X2, 4X4, 1500/2500/3500 |
2001-2004 GMC
Sonoma |
| GMC
VANS 4.3L 4.8L, 5.3L, 6.0, 8.1L, LB7, LLY, 4L60E, 4L80E |
|
| 2001-2007 GMC
Savana |
2001-2005 GMC
Safari |
| GMC
SUV's 4.8L, 5.3L, 6.0L, 8.1L, 4L60E, 4L80E |
|
| 2000-2008 GMC Yukon
& Denali |
2002-2007 GMC Envoy |
| OLDSMOBILE
SUV's 4.2L, 4.3L, 5.3L |
CADILLAC
CARS |
| 2001-2005 Bravada |
2004-2007 Cadillac
CTS-V |
| CADILLAC
TRUCKS 5.3L, 6.0L |
BUICK
SUV's 4.2L, 5.3L |
| 2002-2008 Cadillac
Escalade |
2001-2006 Buick
Rainier |
| HUMMER
SUV's 6.0L |
|
| 2002-2007 Hummer H2 |
|
| HOLDEN
CARS 5.7L 6.0 L All |
|
| 1999-2007 Holden
Commodore |
2001-2007 Holden
Monaro |
| ISUZU
SUV's 4.2L |
SAAB
SUV's 4.2L |
| 2003-2006 Ascender |
2003-2006 9-7x |
Scheduled Enhancements (not included in the initial V2 release)
* 2 Bar Custom Operating Systems for E40 applications are currently in Beta test. It is expected that this functionality will be released within weeks of the initial release.
* LBZ Scanning and Tuning:
LBZ scanning support is scheduled as the first update to FlashScan V2.
LBZ Tuning will follow shortly after.
* Standalone black box logging to SD memory card.
* Standalone reading and flashing of ECM’s.
* Standalone scanning/logging of data to LCD screen.
* Storage of tunes to SD memory card.
* Audible alarms when PIDs go out of user-defined ranges.
* Power off button and/or timer based sleep mode.
* Data input/output from/to the RS232 serial input. I.e. to support dyno controllers and WBO2 serial interfaces.
* ALDL protocol support for scanning and logging OBD-I based GM vehicles.
These enhancements will be made available free to all FlashScan V2 customers as they are released by EFILive.
V1-V2 License Transfer
Driven by excellence in customer service, the FlashScan V1-V2 License Transfer Scheme allows the user to move allocated licenses from FlashScan V1 to FlashScan V2 without having to return interface to EFILive or an EFILive reseller. Upgrade interfaces will be shipped in "Upgrade Mode", requiring PC and V1 to V2 connection and license transfer before the Scan and Tune tool can be activated within the FlashScan V2 interface.
|
