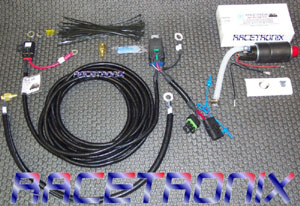

Racetronix LT1 B-Body / Impala SS / Caprice fuel pump kit

	Quantity in Basket:none Code: RX-BLT1-FPKG Price:$179.95 Shipping Weight: 4.00 pounds
	Quantity:
LT1 B-Body / Impala SS / Caprice High-Performance Fuel Pump System with Plug n' Play Harness * Walbro High Pressure 255L/Hr Pump * Walbro to GM Teflon in-tank harness * High Pressure Flex Fuel Line * Stainless Gear Clamp * Custom 30 micron Filter Sock * Factory style fit * Plug & Play (no soldering or crimping required) * Waterproof Delphi Weatherpack Connectors * Heavy 10 Gauge Stranded Copper Wire * Siemens / Tyco 40A Waterproof Relay * Waterproof Delphi Fuse Holder w/SS Hardware * Direct Alternator Hookup for Maximum Voltage * All connections Crimped AND Soldered * Silicon Grease, Spare Fuse, Wire Ties Included * Body Ground Upgrade with Brass Battery Nuts * PnP Compatible w/ Racetronix Pump Booster The Pumps Walbro Fuel Pumps have set the industry standard in high-performance. Walbro pumps are QS9000 certified and are used as OE equipment in many production performance vehicles such as the C5 Corvette. Walbro's gerotor design is able to maintain high pressures while providing high volumes as well. This is done by squeezing the fuel out between two gears instead of pushing it like most factory vane pumps do. (i.e. factory C4 pump). This positive displacement design makes high-performance Walbro pumps small, light weight, quiet, efficient and reliable. The Wiring Harness All fuel pumps are voltage sensitive, the lower the voltage the lower the fuel volume. Gerotor pumps exhibit a significant increase in fuel volume with increased supply voltage. A Walbro pump's average fuel volume increases over 18% by increasing the supply voltage from 12 to 13.5 volts. The factory harness is marginal at best for supplying a factory pump with enough voltage to perform well. This is why the 'hot wire' modification is so popular. Replacing the factory pump with a high-performance pump such as the Walbro GSS340M can easily double the current demand under W.O.T. pressures. The voltage drop in the factory harness increases proportionally to the current demands of the pump. Racetronix has documented tests where the voltage drop in a factory harness has caused over a 25% drop in fuel pump volume. The Racetronix harness uses heavy 10 gauge copper wire to reduce voltage-drop to very low levels. The factory gauge of wire used is three gauges thinner. Our power feed comes off the back of the alternator where voltage is highest. It then runs through a Delphi weatherproof fuse holder and then to the back of the car. The Racetronix harness uses three-position male and female Delphi Weatherpack connectors which plug inline with the factory harness at the back of the tank. No cutting or splicing is required. A Siemens weatherproof 40 amp rated mil-spec. relay is used. These relays have silver plated contacts and are the best money can buy so that you can be guaranteed to have trouble-free operation. The Racetronix harness has a redundant ground upgrade as it is necessary to improve the harness on the negative side of the pump's supply as well. All the harness connections are crimped using certified Delphi crimpers and are soldered as well. All the harnesses we have seen to date from the competition are not soldered. Racetronix supplies a spare ATO fuse, black vinyl wire ties, silicon grease and mounting hardware with each kit. We are including as a bonus our optional battery to body ground upgrade kit. This kit upgrades the under-rated ground wire running from the battery to chassis. It includes a crimped and soldered piece of high strand count 8 gauge copper wire and brass battery nuts with accessory taps.
